First aero package
Development of the very first front and rear wings made of carbon fiber for aerodynamic downforce.
Season 2019 + 2020
e02
Formula Student Electric · First aero package
“Entering aerodynamics – the second development step”
The second vehicle generation introduced the very first carbon wing package and fundamentally reworked the front-axle kinematics as well as the 600 V high-voltage battery system.

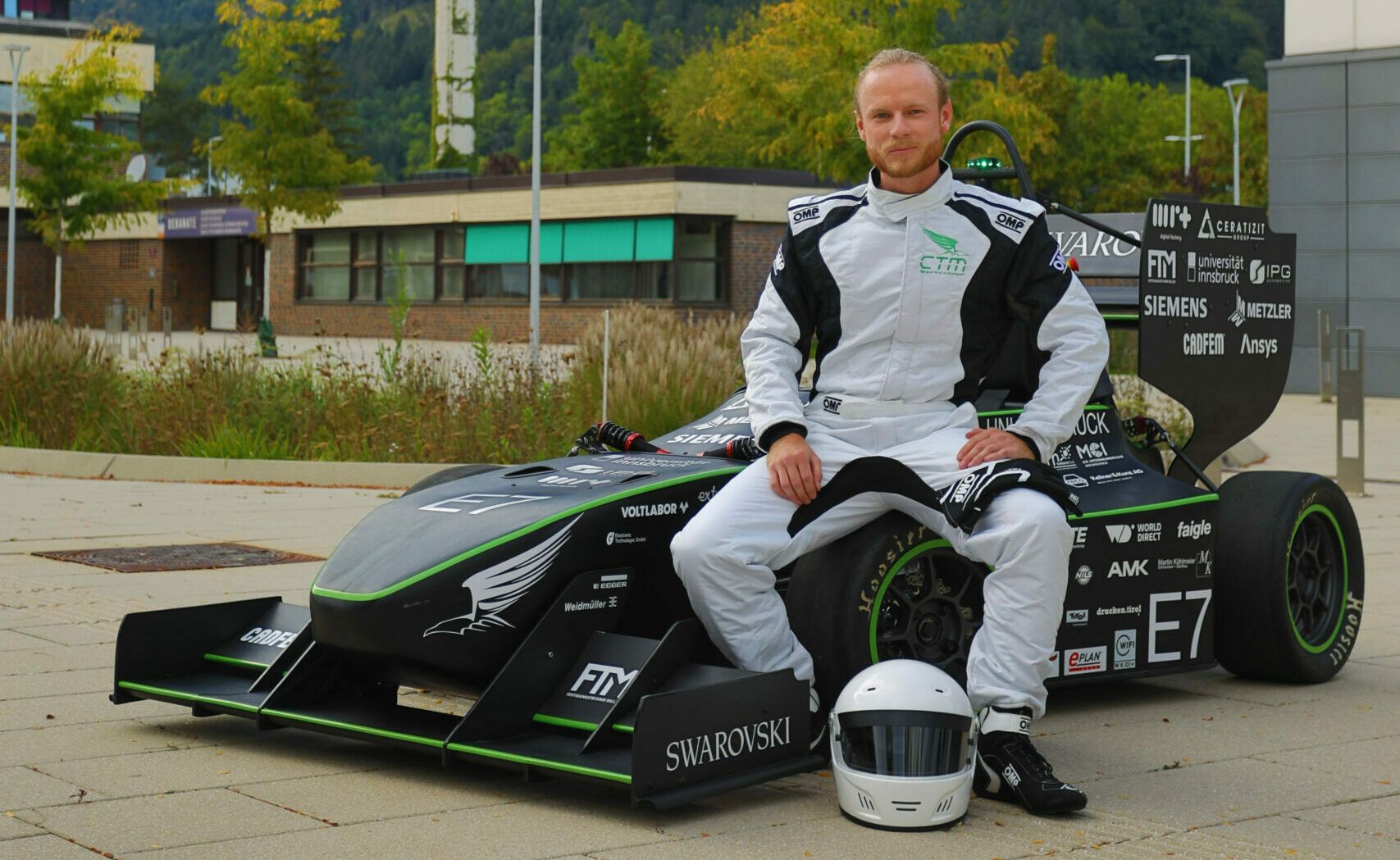

e02 – Introduction of CTM’s first carbon aero package
Key facts
–
0–100 km/h
300 kg
Total weight
140 kW (≈ 190 PS)
Power
100 km/h
Top speed
4WD concept
Drivetrain
Highlights & innovations
An overview of the technical milestones and key innovations of this race car.
Optimized steel frame
Ergonomically redesigned tubular steel space frame with adjusted front-axle kinematics.
600 V battery system
Reworked accumulator with 11 kWh capacity and a two-stage planetary gearbox.
Detailed assemblies
Technical parameters and assembly details for design judges, partners and fans.
Overall vehicle
- Weight: 300 kg
- Dimensions: 3 m × 1.5 m × 1.35 m
- Wheelbase: 1,550 mm
- Power: 140 kW
- Battery capacity: 11 kWh
Chassis
- Ergonomically redesigned tubular steel space frame
- GFRP bodywork
Suspension
- Double wishbone suspension made of carbon with aluminum and steel inserts
- Independent suspension with pushrod system on front and rear axle
- Two-piston brakes on rear and front axle
Aerodynamics
- Front and rear wings made of carbon
- Closed underbody
Powertrain
- Independent wheel-hub motors
- Self-developed 600 V battery system
- Two-stage planetary gearbox for each motor
Season achievements & trophies
First aerodynamics package in the team’s history
Redesign of the front axle and suspension points
Reworked accumulator system
